Product Info

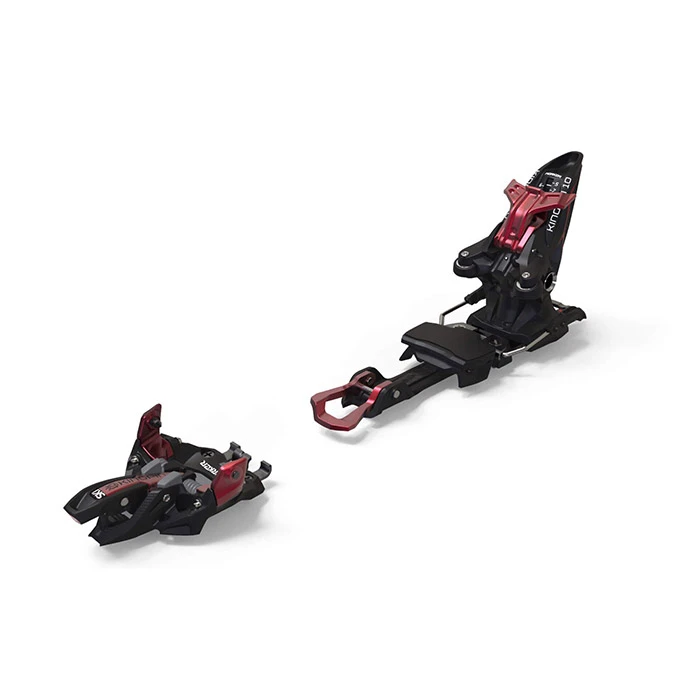

The innovative Marker Kingpin binding redefines the performance standard for Alpine touring bindings. The Kingpin’s unique toe and heel pieces are the culmination of years of R&D testing. Ease of use and best of all, great power transmission while on the descent mean that you can have a perfect day in the backcountry on the Kingpin. The latest version now includes a 2 spring toe based on the Marker Alpinist technology. This saves 80 g per toe without losing performance! The Kingpin offers tremendous walking and step-in comfort, wide drill pattern and XXL Power Transmitter for impressive power transfer. Including climbing aids at 7° and 13° for your accent needs.

**Boot Requires Toe Tech Inserts**

FEATURES
• DIN Range: 5 – 10
• Adult GripWalk Sole Compatible – ISO 23223 A
• Adult Alpine Sole Compatible – ISO 5355 A
• Adult Touring Sole Compatible – ISO 9523
• Brake Widths: 75 – 100 mm | 100 – 125 mm
• 21.5 mm stand height
• ISI Toe System
• Carbon Reinforced Pin Toe
• Anti Ice Pads
• KINGPIN heel
• Vertical & Lateral Release Functions
• Walking Modes: 7°| 13°
• Recommended Skier Weight: 100 – 230 lbs
• 3-Year Manufacture Warranty

TECHNICAL SPECS
Sole Compatibility – The Marker Kingpin will work with any boot sole, but does require toe tech inserts. It does not require a boot heel tech insert. Text us at 541-683-1300 us if you have any compatibility questions. Please include a picture or two of your boot.

Carbon Reinforced Pin Toe – Carbon fiber reinforced material for improved stiffness and super lightweight. Anti Ice Pads in the base of toe to prevent icing in critical areas.

KINGPIN Heel – The revolutionary heel construction for the Pin Technology bindings features wide sole contact points to deliver the kind of direct, lossless power transfer more frequently seen in alpine bindings. The KingPin heel is also many times safer than traditional Pin Technology bindings.

Vertical & Lateral Release Functions – Vertical and lateral individually adjustable release settings in the heel for improved release functionality. Extra large power transmitters in the heel with reduced weight for minimum friction and maximum centering for the lateral movement of the heel.

Walking Modes – The climbing aid offers two positions with 7° and 13° which can easily be accessed with the ski pole, even in an unstable standing position. Integrated elastomer paddings dampen the impact reducing the irritating traditional “clack” and allow more comfortable hiking.
